KOBIL Chat

By integrating the KOBIL Chat API into your MiniApps, you can significantly enhance the overall user experience within your SuperApp ecosystem. With our API, all messages exchanged are not only encrypted but also end-to-end encrypted and digitally signed, ensuring the highest level of security for your users. It provides a seamless and frictionless communication experience while prioritizing data privacy and protection.

It's important to note that MiniApp developers can only access the KOBIL Chat API upon successful completion of KOBIL Identity integration and receipt of access tokens. This ensures that only authorized developers can utilize the Chat API, maintaining security and trust throughout the SuperApp platform.

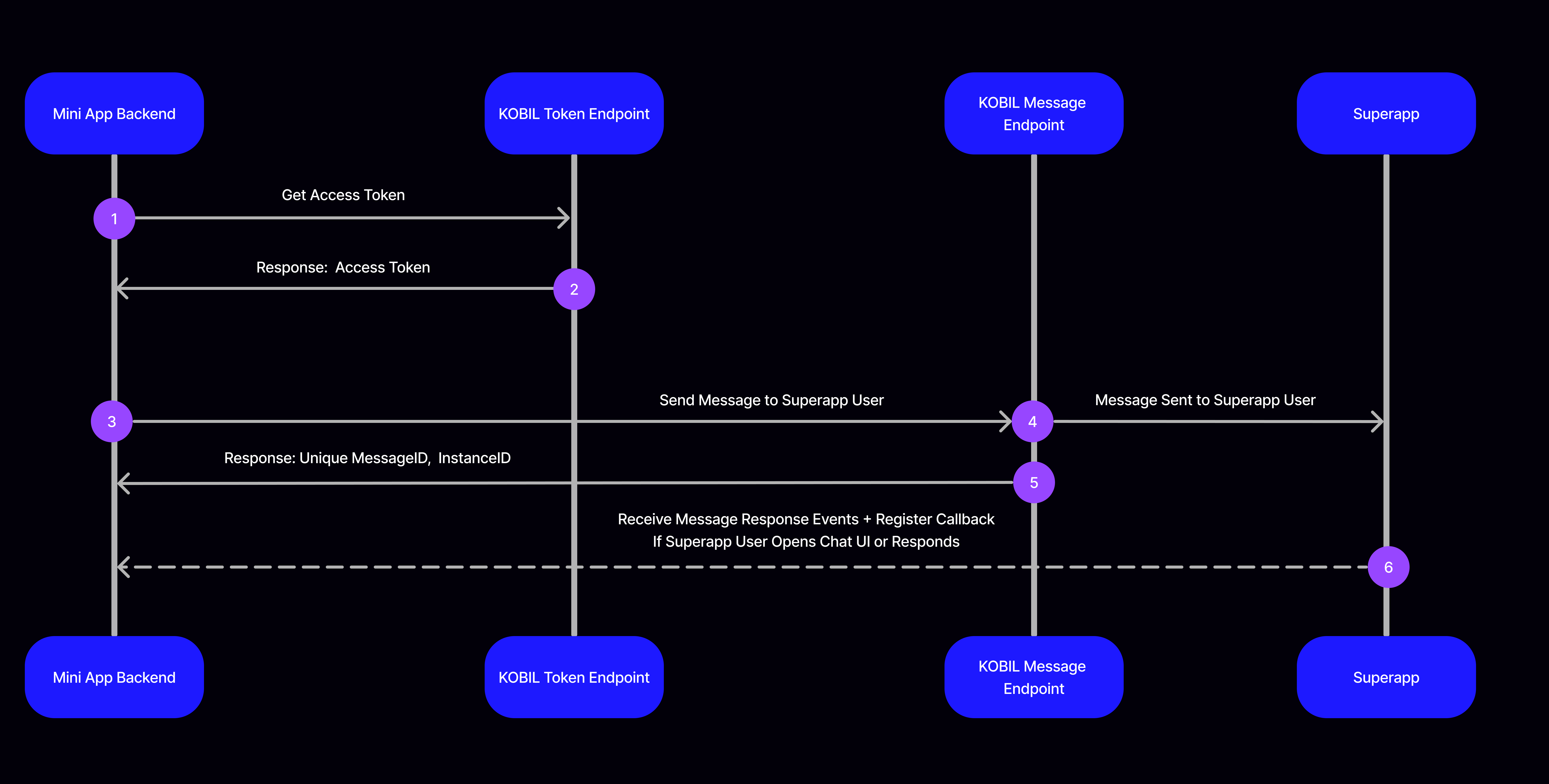

Process Overview

The process of making the Chat API integration can be handled in two steps.

Use services to interact with the user
- Obtain your access token
- Use Chat APIs to interact with user
Let the user interact with you
- Prepare an Endpoint that receives user interactions

In Step 1, Your backend application passes username & password, client ID & client Secret information (given to you by SuperApp Admin) to KOBIL Identity Token Endpoint.

In Step 2, KOBIL Identity Token Endpoint returns a json object containing access token back to your backend application.

In Step 3, Your backend application can consume Chat API with the access token received in Step (2) and send message to the SuperApp user.

In Step 4, KOBIL Message Endpoint will be intermediate layer to deliver the message of your backend application to the SuperApp user.

In Step 5, in response of your request, KOBIL Message Endpoint will return a response including unique messageID and unique instanceID.

In Step 6, if SuperApp user sends a message and/or interacts via Chat UI, all of these messages and interactions will be forwarded to you via the registered callback address.

Use Chat API

Once you have completed the prerequisites, check out how to send messages and how to get response messages when user interacts your chat service.

You can find details about the types of messages you can send and how to send them below.

When you send a message containing any above message type, Chat API will respond you by creating unique messageId like below.

{
  "messageId": "AIXTq1CexX8vakuZZ0",
  "instanceId": "instance-891a8c7a-2260-4d01-a285-cde3e9f7d113"
}

Retrieve Callback Message Upon User Interaction

We notify you when the user interacts through your chat service in SuperApp for following situations:

When user opens your chat service,
When user sends any type of message.

How It Works (Register Callback)

In order to be notified from the user interaction on your chat service, we should define your API address. Once your API address is defined to Chat API, user interactions on your chat service will be forwarded to you in json format as a POST request.

⚠️ YOUR ENDPOINT THAT NOTIFIED BY CHAT API MUST PROVIDE THE FOLLOWING MATTERS
Accepts POST Request
Accepts JSON Body
Shouldn't ask for Authorization

Callback URL registration will be defined by SuperApp Admin via Portal after your preparation of callback address is completed.

note

The Callback URL must be parsable and respond with HTTP status OK (200-300) to SCP's POST request

In order to make development until the callback address is defined, you can find the requests that will be forwarded to your API in user interactions as an example in our document.

Request Parameters

Field Name	Type	Description
serviceUuid	String	UUID (Client ID) of the service through which the message needs to be send
messageType	String	The mpower chat message type. Supported values are: 'processChatMessage', 'choiceRequest', 'attachmentMessage' and 'init'
version	Integer	Message gateway version number (static version 3)
messageText	String	Message to be sent
attachment	File	Attach the file to be sent along with the message
instanceId	String	Some string value. If not provided by default a Random ID will be assigned

Response Message Parameters

Field Name	Type	Description
category	String	Type of message that user sent
messageText	String	Message to be sent
contentType	String	Information about the type and format of the attached file can be obtained
fileName	String	Name of the attached file
fileSize	Integer	Size of the attached file
thumbnailPreview	String
mediaId	String	This is the unique id of the file. You can use this to download the file
messageType	String	The response message type. Supported values are: 'processChatMessage', 'choiceRequest', 'attachmentMessage' and 'init'
version	Integer	Message gateway version number (static version 3)
conversationId	String
ecoId	String	Tenant name of your chat api environment
userId	String	User id value of the user
idempotencyId	String	This is a random UUID
messageId	String	Unique id of the message
timestamp	String	The date the message was sent
serviceUuid	String	Service client id from which the message came
instanceId	String	Some string value. If not provided by default a Random ID will be assigned

Sending Messages

You can send multiple types of messages using this endpoint by adjusting the messageType field:

POST
https://idp.cloud.test.kobil.com/auth/realms/{TENANT_NAME}/mpower/v1/users/{USER_ID}/message

Content Type: application/json

Send Plain Text Message

Sends a simple textual message to the SuperApp user. This is the most basic message type and is commonly used for general-purpose communications, such as notifications, confirmations, or plain chat interactions. It does not contain buttons, media, or interactive components.

Example Request Body

{
  "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
  "messageType": "processChatMessage",
  "version": 3,
  "messageContent": {
    "messageText": "Hi, How are you?"
  }
}

Go to API Reference→

Received Plain Message Response

When the user responds to your chat service as plain text, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Chat API

{
  "message": {
    "category": "chat",
    "content": {
      "messageContent": {
        "messageText": "Hi, How are you?"
      },
      "messageType": "processChatMessage",
      "version": 3
    },
    "conversationId": "Qrs3Av17NShN39h2Nv3QZW2OXlbWyVEu4EzJ4UEwAYQ=",
    "from": {
      "ecoId": "flutter",
      "userId": "44444444444"
    },
    "idempotencyId": "439ef085-d16f-4543-baef-4c52634294f0",
    "messageId": "AHfDYvVCF6FbvdIppv",
    "timestamp": "2022-03-22T07:23:37.812Z",
    "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
    "instanceId": "520798da-3143-44a0-a893-7d92b7fc5174"
  }
}

Send Multi Choice Message

Allows you to send a message with multiple response options (e.g., Yes / No). When the user selects one of the predefined choices, the selected answer is forwarded back to your service via callback. This is ideal for collecting quick decisions, approvals, or feedback.

Example Request Body

{
  "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
  "messageType": "choiceRequest",
  "version": 3,
  "messageContent": {
    "messageText": "Would you like to continue?",
    "choices": [
      {
        "text": "Yes"
      },
      {
        "text": "No"
      }
    ]
  }
}

Go to API Reference→

Received Choice Message Response

When the user chooses a choice, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Chat API

{
  "message": {
    "category": "chat",
    "content": {
      "messageContent": {
        "messageText": "Yes"
      },
      "messageType": "choiceResponse",
      "version": 3
    },
    "conversationId": "Qrs3Av17NShN39h2Nv3QZW2OXlbWyVEu4EzJ4UEwAYQ=",
    "from": {
      "ecoId": "flutter",
      "userId": "44444444444"
    },
    "idempotencyId": "439ef085-d16f-4543-baef-4c52634294f0",
    "messageId": "AHfDYvVCF6FbvdIppv",
    "timestamp": "2022-03-22T07:23:37.812Z",
    "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
    "instanceId": "520798da-3143-44a0-a893-7d92b7fc5174"
  }
}

Send SmartScreen Service Message

Initiates a redirection to another SmartScreen MiniApp. This type of message is used when you want to trigger an action in another part of the SuperApp or open a MiniApp based on user input. It includes a deep link via smartScreenServiceUuid.

Example Request Body

{
  "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
  "messageType": "smartScreenService",
  "version": 3,
  "messageContent": {
    "messageText": "Hello, this is a SmartScreen Service Message",
    "smartScreenServiceUuid": "service_client_id"
  }
}

Go to API Reference→

Common Response Body For All Sending Messages

When you send a message, KOBIL Chat API will respond you by creating unique

{
  "messageId": "AIXTq1CexX8vakuZZ0",
  "instanceId": "instance-891a8c7a-2260-4d01-a285-cde3e9f7d113"
}

Sending Attachment Message

Allows sending multimedia files such as images, PDFs, or documents to the user. This message type is useful when sharing contracts, invoices, or any binary content. Requires a multipart/form-data request body with a valid file and message metadata.

This API is called as multipart/form-data

POST
https://idp.cloud.test.kobil.com/auth/realms/{TENANT_NAME}/mpower/v1/users/{USER_ID}/media

Content Type: multipart/form-data

Example Request Body

attachment: file.jpg
message: {
  "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
  "messageType": "attachmentMessage",
  "version": 3,
  "messageContent": {
    "messageText": "${message}"
  }
}

Go to API Reference→

Example Response Body

{
  "messageId": "AIXTq1CexX8vakuZZ0",
  "instanceId": "instance-891a8c7a-2260-4d01-a285-cde3e9f7d113"
}

Received Attachment Message Response

When the user sends an attachment, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Chat API

{
  "message": {
    "category": "chat",
    "content": {
      "mediaContent": {
        "contentType": "image/jpeg",
        "fileName": "1649919101370203.jpeg",
        "fileSize": 173705,
        "thumbnailPreview": "L9OWyt~q?ct7%gWVs;t7?HIUR%t7",
        "mediaId": "QUlRcVd3ME1qU3d2dDRGU3NiOjE4YmE1MGRmLTFiYTEtNGEzMC05ZjAyLTYyM2U2ZWZiODI2YQ=="
      },
      "messageContent": {
        "messageText": ""
      },
      "messageType": "attachmentMessage",
      "version": 3
    },
    "conversationId": "hdT+qmEa8ryNVUHFyZCQk8vLfM0BBuxWS95+CB+t2XA=",
    "from": {
      "ecoId": "flutter",
      "userId": "11111111111"
    },
    "idempotencyId": "863e4ae5-abaa-4584-9adc-b73f67ce80c9",
    "messageId": "AIQqWw0MjSwvt4FSsb",
    "timestamp": "2022-04-14T06:51:42.086Z",
    "serviceUuid": "fc6478a7-320f-40ca-9f90-4e3d2443f293",
    "instanceId": "instance-7ef9e560-7384-4e79-9b20-bdab0cc0003f"
  }
}

Get Attachment file for Attachment Message Response

To get attachment that sent by user, make a GET request to this API, you should fill out {MEDIA_ID} as media id of file that you want to get.

GET
https://idp.cloud.test.kobil.com/v1/mpower/tenants/{TENANT_NAME}/media/{MEDIA_ID}/download

note

To be able to download the media, a request must be made using a token obtained from the client that sent the media.

Go to API Reference→

Sending PDF Signature Request

Sends a document to the user for digital signing. The file must be a PDF, and coordinates must be provided for the signing area. Once the user signs the document, the signed version is delivered back to your callback endpoint. This is used for formal approvals, agreements, or consent-based workflows.

POST
https://idp.cloud.test.kobil.com/auth/realms/{TENANT_NAME}/mpower/v1/users/{USER_ID}/signature

Content Type: multipart/form-data

Example Request Body

{
  signatureFile: <File>,
  signatureData: {
      "version":3,
      "pageNumber":1,
      "bottomLeftXCoordinate":59,
      "bottomLeftYCoordinate":89,
      "topRightXCoordinate":85,
      "topRightYCoordinate":96,
      "serviceUuid":"c033eab7-c7a7-4892-abb5-2fb68f14d5a2",
      "messageText":"Please sign here",
      "callbackUrl":"https://<HOST>/path"
  }
}

Go to API Reference→

Example Response Body

{
  "messageId": "AIXTq1CexX8vakuZZ0",
  "instanceId": "instance-891a8c7a-2260-4d01-a285-cde3e9f7d113"
}

Received PDF Signature Response

When the user responds to your chat service by signing the corresponding PDF document, we will deliver this response to you via API. You can find the sample request that delivered to your API below.

Sample Request Sent by Chat API

{
  "message": {
    "content": {
      "mediaContent": {
        "contentType": "application/pdf",
        "fileName": "Agreement.pdf",
        "fileSize": 1529617,
        "thumbnailPreview": "",
        "mediaId": "QWhXMnJFUWtPVmRKb20wUlVJOkFoVzJ4UGkzUUk0TWVoTmNQcA=="
      },
      "messageContent": {
        "messageText": "Signed"
      },
      "messageType": "signatureResponse",
      "signatureStatus": "signed",
      "version": 3
    },
    "from": {
      "ecoId": "johndoe123",
      "userId": "john.doe@gmail.com"
    },
    "messageId": "AhW2rEQkOVdJom0RUI",
    "responseId": "AhW2xQt2ziR8BkCSv1",
    "timestamp": "2024-05-03T13:47:00.791Z",
    "serviceUuid": "c033eab7-c7a7-4892-abb5-2fb68f14d5a2",
    "instanceId": "e016ec12-4d93-44e9-9d7c-fceca765f0a7"
  }
}

PDF Signature Parameters:

Field Name	Type	Description
signatureFile	File	File you wanted to sign
signatureData	JSON	Data required to initiate PDF sign
pageNumber	integer	File you wanted to sign
topRightXCoordinate	number	Right side Top X-axis value to start signature area
topRightYCoordinate	number	Right side Top Y-axis value to start signature area
bottomLeftXCoordinate	number	Left side Bottom X-axis value to start signature area
bottomLeftYCoordinate	number	Left side Bottom Y-axis value to start signature area
serviceUuid	uuid	UUID (Client ID) of the service through which signature needs to be send
messageText	String	Message to be displayed while sending document
callbackUrl	URL	URL which you want to receive pdf signature result (should be of POST method)
instanceId	string	Some string value. If not provided by default a Random ID will be assigned

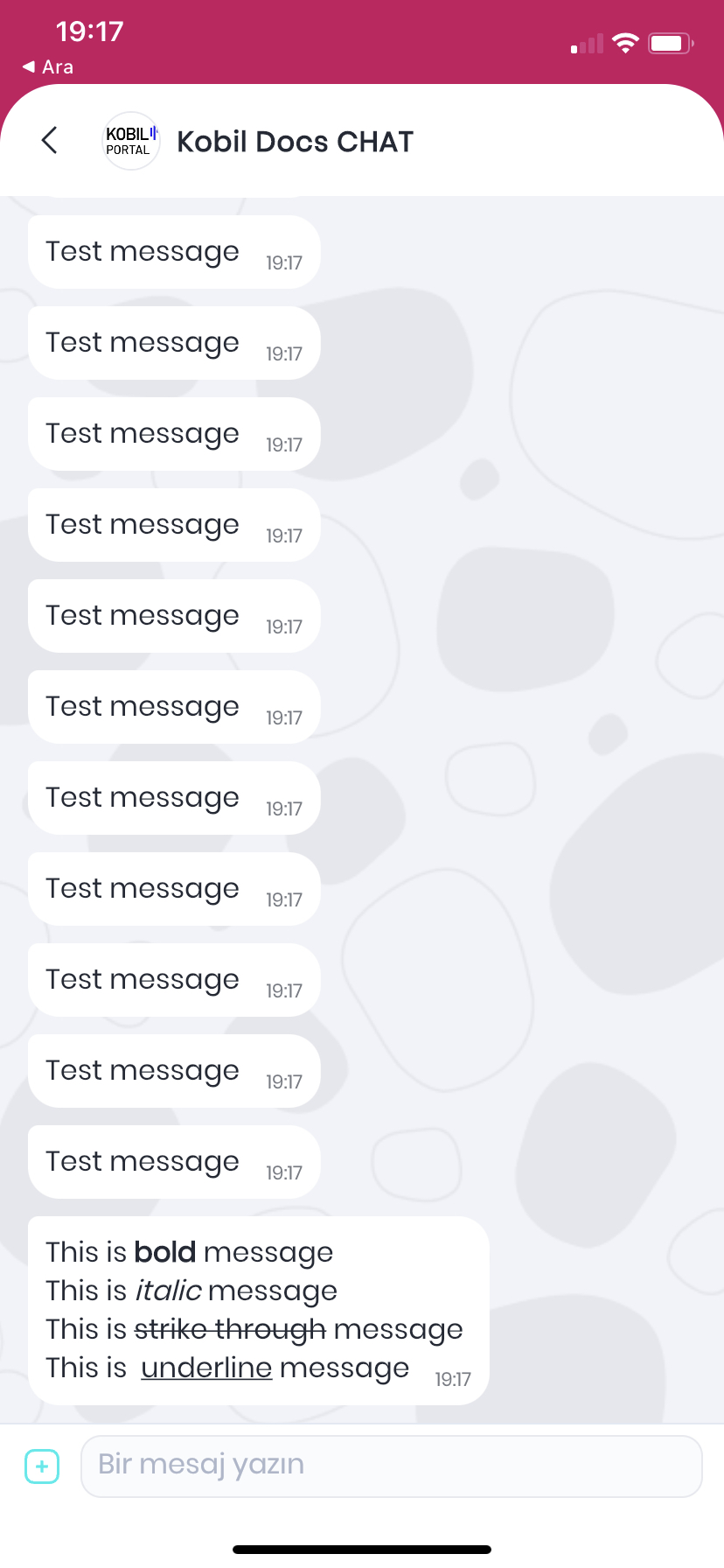

Message Styling

Kobil Chat provides you to some styling options when sending a message. There are 4 different style supported which are given below with their special characters:

Using the Chat API, you can send some parts that wanted to be styled within below special characters

Bold message

You can send bold message inside *
Example: This is *bold* message

Italic message

You can send bold message inside _
Example: This is _italic_ message

Strike through message

You can send bold message inside ~
Example: This is ~strike through~ message

Underline message

You can send bold message inside ```
Example: This is ```underline``` message

New Line

You can use \n to move to a new line.
Example: This is \n a message

Troubleshooting

401 Unauthorized

{
  "error": "HTTP 401 Unauthorized"
}

This error occurs when you use an invalid access token. Access token could be invalid for one of below reasons

The token you receive may not be valid for the service you want to access. The serviceUuid and clientId values you use must be equal to each other.
The account from which you receive the token may not have sufficient privileges, in this case, you should contact the relevant system administrator.

KOBIL Chat​

Process Overview​

Use Chat API​

Retrieve Callback Message Upon User Interaction​

How It Works (Register Callback)​

Request Parameters​

Response Message Parameters​

Sending Messages​

Send Plain Text Message​

Received Plain Message Response​

Send Multi Choice Message​

Received Choice Message Response​

Send SmartScreen Service Message​

Common Response Body For All Sending Messages​

Sending Attachment Message​

Received Attachment Message Response​

Get Attachment file for Attachment Message Response​

Sending PDF Signature Request​

Received PDF Signature Response​

PDF Signature Parameters:​

Message Styling​

Troubleshooting​

401 Unauthorized​

KOBIL Chat

Process Overview

Use Chat API

Retrieve Callback Message Upon User Interaction

How It Works (Register Callback)

Request Parameters

Response Message Parameters

Sending Messages

Send Plain Text Message

Received Plain Message Response

Send Multi Choice Message

Received Choice Message Response

Send SmartScreen Service Message

Common Response Body For All Sending Messages

Sending Attachment Message

Received Attachment Message Response

Get Attachment file for Attachment Message Response

Sending PDF Signature Request

Received PDF Signature Response

PDF Signature Parameters:

Message Styling

Troubleshooting

401 Unauthorized
