KOBIL Pay

Integrating the KOBIL Pay API into your MiniApps offers a transformative enhancement to the entire SuperApp ecosystem, significantly improving the user experience. With KOBIL Pay's one-click payment feature, customers can effortlessly complete transactions with just a single click, eliminating the hassle of lengthy checkout processes. This streamlined payment experience enhances convenience and efficiency, fostering increased customer satisfaction and loyalty.

It's important to note that access to the KOBIL Pay API is exclusively granted to MiniApp developers who have successfully completed KOBIL Identity integration and received access tokens. This ensures secure and authorized access to payment functionalities within the SuperApp platform, maintaining the highest standards of security and trust.

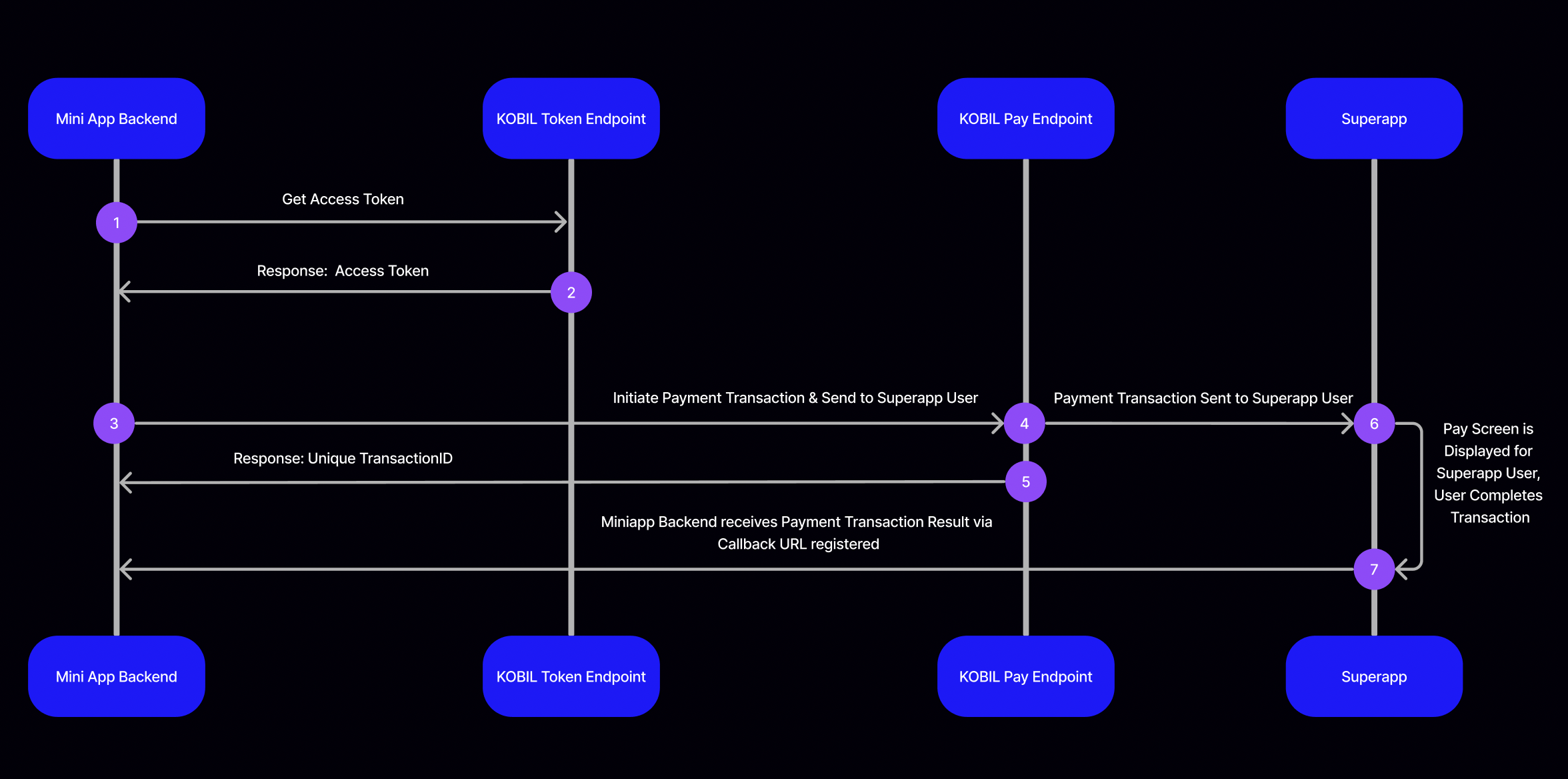

Process Overview

The process of making the Pay API integration can be handled in two steps. Making request to Pay API for creating, inquiring, canceling, or refunding a payment transaction then listen the result of these operations via your API.

Use services to operate payment transactions
- Obtain your access token
- Use Pay APIs to create, cancel or refund a transaction
Listen the result of transactions
- Prepare an Endpoint that receives the result of the transaction

In Step 1, Your backend application passes username & password, client ID & client Secret information (given to you by SuperApp Admin) to KOBIL Identity Token Endpoint.

In Step 2, KOBIL Identity Token Endpoint returns a json object containing access token back to your backend application.

In Step 3, Your backend application can consume Pay API with the access token received in Step (2) and initiate payment transaction to send this transaction request to the SuperApp user. At the payment initiation (payment request), you will register callback URL and define payment amount and other parameters.

In Step 4, KOBIL Pay Endpoint will be intermediate layer to deliver the payment transaction request of your backend application to the SuperApp user.

In Step 5, in response of your request, KOBIL Message Endpoint will return a response including unique transactionID.

In Step 6, KOBIL Pay screen will be displayed for SuperApp user. SuperApp user completes the transaction.

In Step 7, when SuperApp user completes the transaction via Pay UI, your backend application will receive payment transaction result as shown in the example in our document. The result of the transaction is sent to the callback URL (merchantCallback) defined in step 3.

Use Pay API

Once you have completed the prerequisites, check out how to start, cancel, refund, and check the status transactions. To learn how we notify you when user interacts your payment service.

You can find details about the transaction operations below.

Retrieve Callback Message Upon User Transaction

When you make any operations like creating, canceling, refunding a payment transaction, all results of these operations will be delivered to you via your merchantCallback API address.

We notify you of all changes of transaction status via API call. We make request to your merchantCallback address that defined by you when making any transaction operation.

How It Works (Register Callback)

⚠️ YOUR ENDPOINT THAT NOTIFIED BY CHAT API MUST PROVIDE THE FOLLOWING MATTERS
Accepts POST Request
Accepts JSON Body
Shouldn't ask for Authorization

Sample Request Sent by Pay API

{
  "transactionId": "f7f0ef2f-fa86-4865-85e6-e8e37fc7fc24",
  "operationId": null,
  "status": "finished",
  "message": "Payment complete.",
  "transactionStatus": "finished",
  "transactionMessage": "Payment complete.",
  "gateway": "creditCard"
}

Available Payment Transaction Statuses

Transaction status can be forwarded to you in one of the following situations. Please note that only finished status means the operation is successful.

Status	Description
new	Newly created transaction status. This transaction will be completed and this statue will be changed with one of the other status.
processing	The transaction is being processed
processing_3d_secure	The transaction is being processed with 3D Secure
processing_digital	The transaction is being processed with digital processing
notification	Notification
finished	The transaction is completed successfully
cancelled	The transaction is cancelled with some reason (Reason will be send within message field)
closed	The transaction is closed with some reason (Reason will be send within message field)
timeout	Transaction is not completed in certain time
error	The transaction is failed with some reason (Reason will be send within message field)
void	The payment has been refunded.(Voiding can be made before the end of the day operations and all amount will be canceled.)
refund	The payment has been refunded. (Refunds can be made after the end of the day operations and partial or full refunds can be made.)

Payment Transaction Initialization

You can initiate a standard payment transaction or a pre-auth transaction. To initiate a Pre-Auth transaction, include the field "paymentTenantType": "preAuth" in the request body.

To start a new payment transaction, make a POST request to this API.

POST
https://pay.cloud.test.kobil.com/mpay-merchant/create/transaction

Content Type: application/json

Regular Request

A standard payment transaction request used to immediately charge the user.

Example Request Body:

{
    "version": 1,
    "idempotencyId": "{{$randomUUID}}",
    "userId": "aca2fa51-bde8-4e83-becd-44bfde318dd8",
    "merchantId": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
    "merchantServiceUUID": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
    "merchantName": "ISPARK",
    "merchantCallback": "https://yourapi.com/payment-callback-address",
    "transactionTimeout": 11,
    "tenantId":"kurtis",
    "amount": 1300,
    "currency": "TRY",
    "paymentContent": [
        [
            {
                "key": "Service Amount",
                "value": "10.0 TL"
            }
            {
                "key": "Tax Amount",
                "value": "3.0 TL"
            }
        ]
    ]
}

Go to API Reference→

Received Initiate Payment Transaction Response

When the user responds to your chat service as plain text, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d",
  "operationId": null,
  "status": "finished",
  "message": "Payment complete.",
  "transactionStatus": "finished",
  "transactionMessage": "Payment complete.",
  "gateway": "creditCard"
}

Pre-Auth Request

A pre-authorization transaction that locks funds on the user's card but does not immediately collect payment, allowing final amount confirmation later via Post-Auth.

Example Request Body:

{
    "version": 1,
    "idempotencyId": "{{$randomUUID}}",
    "userId": "aca2fa51-bde8-4e83-becd-44bfde318dd8",
    "merchantId": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
    "merchantServiceUUID": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
    "merchantName": "ISPARK",
    "merchantCallback": "https://yourapi.com/payment-callback-address",
    "transactionTimeout": 11,
    "tenantId":"kurtis",
    "amount": 1300,
    "paymentTenantType": "preAuth",
    "currency": "TRY",
    "paymentContent": [
        [
            {
                "key": "Service Amount",
                "value": "10.0 TL"
            }
            {
                "key": "Tax Amount",
                "value": "3.0 TL"
            }
        ]
    ]
}

Go to API Reference→

Received Initiate Pre-Auth Transaction Response

When the user responds to your payment, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "a18ee084-e4a4-40d8-925f-d1d96c52b5fa",
  "operationId": null,
  "status": "finished",
  "message": "Payment Successfully Completed",
  "cardGatewayType": "credit_sipay",
  "nextAction": "https://pay.gondor-shift-qa-fpl6t.gondor.dev.kobil.com/mpay-merchant/create/transaction/postauth?id=a18ee084-e4a4-40d8-925f-d1d96c52b5fa&idempotencyId=86aed463-4841-4383-ad1d-e44d69cb4899",
  "transactionStatus": "finished",
  "transactionMessage": "Payment Successfully Completed"
}

Common Example Response Body:

When you start a new transaction, Payment API will respond you by creating unique transactionId like below.

{
  "transactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d",
  "operationId": null,
  "status": "new",
  "message": "Transaction created"
}

Payment Initiation Parameters

Request Parameters

Field Name	Type	Description
idempotencyId	String	Random unique ID
userId	String	ID of the user to whom the payment will be made
merchantId	String	ID of the payment service
merchantServiceUUID	String	UUID (Client ID) of the payment service. It must be the same as merchantId.
merchantName	String	The name of the payment service
merchantCallback	String	The address where the payment result will come from
transactionTimeout	Integer	Payment expiry time (in minutes)
amount	Integer	How much the payment is (100 kuruş = 1 Turkish Lira(TL))
currency	String	Payment currency ('TRY', 'EUR', etc.)
paymentContent	Array	Contents of the payment cart
paymentTenantType	String	Defines the transaction type

Response Parameters

Field Name	Type	Description
transactionId	String	ID of the payment transaction
status	String	It gives information about the status of the process. Other status examples; 'new': newly started, 'finished': completed, 'cancelled': operation canceled, 'closed': transaction closed, 'timeout': timed out, 'void': operation invalid, 'error': operation failed they mean that.
message	String	It contains a detailed message about the transaction.

Payment Transaction Finalization

The Post-Auth operation is used to finalize a pre-authorized payment. After a Pre-auth transaction is successfully completed, Post-Auth allows the merchant to confirm and collect the final amount from the user's payment method. This is particularly useful in scenarios where the final payment amount may vary (e.g., hotel stays, car rentals).

Before sending the Post-Auth request, in addition to the id and idempotencyId we obtained from the nextAction url, the amount and merchantCallback query params are added to the url and make a GET request to this API.

GET
https://pay.cloud.test.kobil.com/mpay-merchant/create/transaction/postauth?id=a18ee084-e4a4-40d8-925f-d1d96c52b5fa&idempotencyId=86aed463-4841-4383-ad1d-e44d69cb4899&amount=40&merchantCallback=https://yourapi.com/payment-callback-address

Go to API Reference→

Example Response Body:

{
  "operationId": "92ce97cc-ba0c-429c-bfae-fd11327f6dce",
  "status": "processing",
  "message": "PostAuth request in progress",
  "transactionId": "7d97c422-c291-49c6-b62c-9593e2d8e14c"
}

Received Post-Auth Transaction Response

When the user responds to your payment, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "511d9df3-04b2-4665-98bb-190daef025f3",
  "operationId": "97ea58dc-23b9-4643-875b-7588fabcbe8e",
  "status": "finished",
  "message": "Complete PostAuth transaction successfully",
  "cardGatewayType": "credit_sipay",
  "nextAction": null,
  "transactionStatus": "finished",
  "transactionMessage": "Complete PostAuth transaction successfully"
}

Payment Post-Auth Parameters

Request Parameters

Field Name	Type	Description
id	String	Transaction ID
idempotencyId	String	Random unique ID
amount	String	The amount for PostAuth transaction. If omitted or 0, the full amount of the original payment is paid.
merchantCallback	String	The address where the payment result will come from

Response Parameters

Field Name	Type	Description
operationId	String	Unique ID for the PostAuth operation
status	String	Current status of the PostAuth request
message	String	Message about the request state
transactionId	String	ID of the original pre-authorized transaction

Payment Transaction Status

You can check the current status of any initiated payment transaction. This is useful to verify the final state of the transaction if no callback was received or for reconciliation purposes.

POST
https://pay.cloud.test.kobil.com/mpay-merchant/create/transaction/status

Content Type: application/json

Example Request Body:

{
  "merchantId": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
  "merchantCallback": "https://yourapi.com/payment-callback-address",
  "transactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d"
}

Go to API Reference→

Example Response Body:

{
  "transactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d",
  "operationId": null,
  "status": "inquiring status",
  "message": "Inquire status in progress"
}

Received Payment Transaction Status Response

When the user responds to your chat service as plain text, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d",
  "operationId": null,
  "status": "finished",
  "message": "Payment complete.",
  "transactionStatus": "finished",
  "transactionMessage": "Payment complete.",
  "gateway": "creditCard"
}

Payment Status Parameters

Request Parameters

Field Name	Type	Description
merchantId	String	ID of the payment service
merchantCallback	String	The result of the transaction will be forwarded to this address.
transactionId	String	The id of the payment transaction to be queried

Response Parameters

Field Name	Type	Description
transactionId	String	ID of the queried payment transaction
status	String	It gives information about transaction status.
message	String	It contains a detailed message about the transaction.

Payment Transaction Cancellation (Void Transaction)

Cancellation (void) is used to cancel a payment transaction that was initiated but not yet finalized. Cancellation is usually only possible within the same business day.

POST
https://pay.cloud.test.kobil.com/mpay-merchant/create/transaction/void

Content Type: application/json

Example Request Body:

{
  "version": 1,
  "userId": "11111111111",
  "idempotencyId": "{{$randomUUID}}",
  "merchantServiceUUID": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
  "merchantCallback": "https://yourapi.com/payment-callback-address",
  "transactionTimeout": 60,
  "merchantId": "9f0022ae-8b0b-4165-a164-3ded334a7fe4",
  "paymentTransactionId": "ffb350c5-cb4a-4a83-be8e-cb86c7bc692a",
  "cancellationMessage": "Iptal"
}

Go to API Reference→

Example Response Body:

{
  "operationId": "a196b70c-6303-4476-976f-c56b6f3ead87",
  "status": "cancellation",
  "message": "Cancel request in progress",
  "transactionId": null
}

Received Cancel Payment Transaction Response

When the user responds to your chat service as plain text, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "a196b70c-6303-4476-976f-c56b6f3ead87",
  "operationId": "a196b70c-6303-4476-976f-c56b6f3ead87",
  "status": "finished",
  "message": "Transaction is voided by merchant successfully",
  "transactionStatus": "finished",
  "transactionMessage": "Transaction is voided by merchant successfully",
  "gateway": null,
  "refundTransactionId": "a196b70c-6303-4476-976f-c56b6f3ead87",
  "paymentTransactionId": "8f14f5e3-082b-4b03-95e8-8cfc1dbe882d",
  "cancelStatus": "finished"
}

Payment Cancellation Parameters

Request Parameters

Field Name	Type	Description
idempotencyId	String	Random unique ID
userId	String	ID of the user who will cancel the payment
merchantServiceUUID	String	UUID (Client ID) of the payment service.
merchantCallback	String	Its callback URL.
transactionTimeout	Integer	Payment expiry time (in minutes)
merchantId	String	ID of the payment service. It must be the same as merchantServiceUUID.
paymentTransactionId	String	ID of the payment you want to cancel.
cancellationMessage	String	Payment cancellation message.

Response Parameters

Field Name	Type	Description
transactionId	String	ID of the payment transaction
status	String	It gives information about the status of the 'cancellation' process. Other status examples; 'finished': means the cancellation process has been completed, 'closed': the cancellation process has been closed for some reason, 'timeout': the cancellation process has timed out, 'error': an error has occurred during the cancellation process, they mean that.
message	String	It contains a detailed message about the process.

Payment Transaction Refundation

Refund is used to return part or all of a payment that was already captured. Refunds are processed after the payment has been finalized and settled.

POST
https://pay.cloud.test.kobil.com/mpay-merchant/create/transaction/refund

Content Type: application/json

Example Request Body:

{
  "version": 1,
  "userId": "aca2fa51-bde8-4e83-becd-37bfde318dd8",
  "idempotencyId": "{{$randomUUID}}",
  "merchantServiceUUID": "5df48364-3d95-4888-b8b4-a8c99324a8f6",
  "merchantCallback": "https://integration.cloud.kobil.com/v1/integration/connect/print",
  "transactionTimeout": 60,
  "merchantId": "5df48364-3d95-4888-b8b4-a8c99324a8f6",
  "merchantUserId": "5df48364-3d95-4888-b8b4-a8c99324a8f6",
  "paymentTransactionId": "fb6c0b42-3161-4851-82f0-e0df658b73ca",
  "cancellationMessage": "refund call",
  "amount": 5555,
  "currency": "USD",
  "merchantServiceProviderId": "5df48364-3d95-4888-b8b4-a8c99324a8f6"
}

Go to API Reference→

Example Response Body:

{
  "operationId": "896d3a9a-feea-4aff-9203-39520d7bcb01",
  "status": "cancellation",
  "message": "Cancel request in progress",
  "transactionId": null
}

Received Refund Payment Transaction Response

When the user responds to your chat service as plain text, we will deliver this response to you via API. You can find sample request that delivered to your API below.

Sample Request Sent by Pay API

{
  "transactionId": "896d3a9a-feea-4aff-9203-39520d7bcb01",
  "operationId": "896d3a9a-feea-4aff-9203-39520d7bcb01",
  "status": "finished",
  "message": "Transaction is refunded by merchant successfully",
  "transactionStatus": "finished",
  "transactionMessage": "Transaction is refunded by merchant successfully",
  "gateway": null,
  "refundTransactionId": "896d3a9a-feea-4aff-9203-39520d7bcb01",
  "paymentTransactionId": "fb6c0b42-3161-4851-82f0-e0df658b73ca",
  "cancelStatus": "finished"
}

Payment Refund Parameters

Request Parameters

Field Name	Type	Description
userId	String	The user id to which the refund will be made
merchantServiceUUID	String	UUID (Client ID) of the payment service.
merchantCallback	String	the address where the result of the payment refund will come
transactionTimeout	Integer	Payment expiry time (in minutes)
merchantId	String	ID of the payment service. It must be the same as merchantServiceUUID.
merchantUserId	String	ID of the payment service user. It must be the same as merchantId and merchantServiceUUID.
paymentTransactionId	String	ID of the transaction for which the refund will be processed
amount	Integer	How much the refund is (100 kuruş = 1 Turkish Lira(TL))
currency	String	Payment refund currency ('TRY', 'EUR', etc.)
merchantServiceProviderId	String	ID of the payment service. It must be the same as merchantServiceUUID.

Response Parameters

Field Name	Type	Description
transactionId	String	ID of the transaction for which the refund was made
status	String	It gives information about the status of the 'payment refund' process. Other status examples; 'finished': means the refund process has been completed, 'closed': the refund process has been closed for some reason, 'timeout': the refund process has timed out, 'error': an error has occurred during the refund process, they mean that.
message	String	It contains a detailed message about the process.

Troubleshooting

401 Unauthorized

{
  "error": "HTTP 401 Unauthorized"
}

This error occurs when you use an invalid access token. Access token could be invalid for one of below reasons

The token you receive may not be valid for the service you want to access. The serviceUuid and clientId values you use must be equal to each other.
The account from which you receive the token may not have sufficient privileges, in this case, you should contact the relevant system administrator.

KOBIL Pay​

Process Overview​

Use Pay API​

Retrieve Callback Message Upon User Transaction​

How It Works (Register Callback)​

Available Payment Transaction Statuses​

Payment Transaction Initialization​

Regular Request​

Received Initiate Payment Transaction Response​

Pre-Auth Request​

Received Initiate Pre-Auth Transaction Response​

Payment Initiation Parameters​

Payment Transaction Finalization​

Received Post-Auth Transaction Response​

Payment Post-Auth Parameters​

Payment Transaction Status​

Received Payment Transaction Status Response​

Payment Status Parameters​

Payment Transaction Cancellation (Void Transaction)​

Received Cancel Payment Transaction Response​

Payment Cancellation Parameters​

Payment Transaction Refundation​

Received Refund Payment Transaction Response​

Payment Refund Parameters​

Troubleshooting​

401 Unauthorized​

KOBIL Pay

Process Overview

Use Pay API

Retrieve Callback Message Upon User Transaction

How It Works (Register Callback)

Available Payment Transaction Statuses

Payment Transaction Initialization

Regular Request

Received Initiate Payment Transaction Response

Pre-Auth Request

Received Initiate Pre-Auth Transaction Response

Payment Initiation Parameters

Payment Transaction Finalization

Received Post-Auth Transaction Response

Payment Post-Auth Parameters

Payment Transaction Status

Received Payment Transaction Status Response

Payment Status Parameters

Payment Transaction Cancellation (Void Transaction)

Received Cancel Payment Transaction Response

Payment Cancellation Parameters

Payment Transaction Refundation

Received Refund Payment Transaction Response

Payment Refund Parameters

Troubleshooting

401 Unauthorized
